FASTR® System
Offering safe and reliable efficiency for deeper deepwater drilling, the FASTR® System prevents the crushing of tubulars.
Benefits of the FASTR System
Enhanced Tubular Protection
Minimizes equipment damage, saving on costly replacements
Boost Operational Efficiency
Reduces costs through smoother operations and faster completions
Versatile Application Across Projects
Adapts to various scenarios, maximizing time savings
Greater Strength and Versatility
With a 6 5/8-inch FH Slip-Proof® Landing String design, the FASTR® System features a 6-foot Slip-Proof® section to prevent tubular crushing by the FASTR® Slip System. The V-150 grade FASTR® Landing String is rated to 2.0 million lbs, with the UD-165 grade rated to 2.5 million lbs. The specially designed box taper provides greater capacity for use with a 1,000-ton or 1,250-ton elevator.

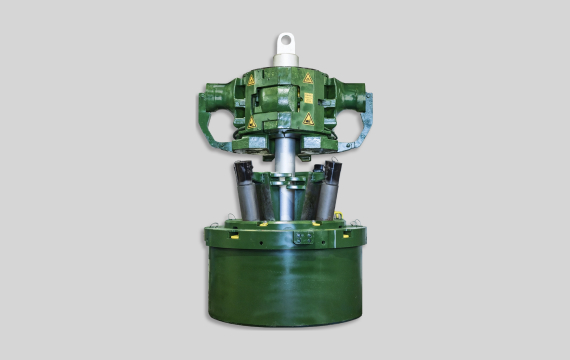

FASTR® Slip System
Handles loads of up to 1,000 tons safely and reliably with standard rig equipment when landing long casing strings in deep water.
Hydraulic 1,000-ton Elevator
Dressed with specially designed inserts, accommodating the 6 5/8” FASTR® Landing String.
FASTR® 1,000-ton Slip
Engineered with the optimum angle and length, allowing for better load distribution.
Backsaver®
A hydraulic- or air-operated lift for slips designed to aid safe and efficient equipment handling during drilling.
Split Insert Bowl
Uniquely designed for FASTR® slips, with designs available to enable easy installation and removal of the tubing control line, improving efficiency.

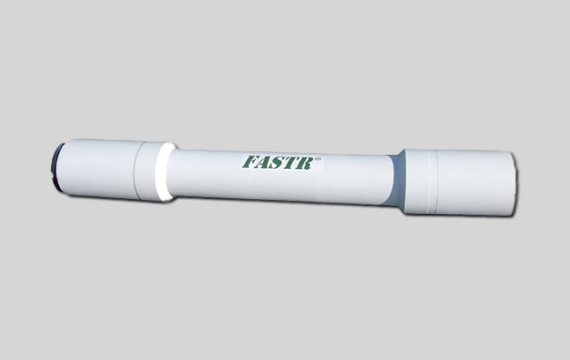

FASTR® Landing String
Offers a tensile and slip crushing capacity for 2.0 and 2.5 million lbs., with standard 6 5/8” FH connections for easy makeup and handling.
2,500,000 Pound Landing String Challenges: Have we Reached the Limit of Today’s Technology?
FASTR® 3MM lb System
AMP 1500 Elevator
The FORUM Handling Tools AMP® Elevators are built to meet API 8C safety and strength standards. Designed with a Latch and Lock system to prevent accidental opening, the AMP® automatically closes when the pipe activates the closing trigger. A hydraulic verification cylinder provides both mechanical and visual confirmation for enhanced safety.
1500 Ton LRMB
The FORUM Handling Tools LRMB features integral hydraulic slip actuation within a large master bushing frame, designed for flush mounting to achieve the lowest possible connection height. Its slip assemblies utilize circumferential dies for optimal contact, while patented load shoulder dies prevent slip-toe failures and reduce pipe stress. Proprietary slip tapers enhance axial loading and minimize slip-crushing forces, ensuring safe and efficient handling of long, heavy pipe strings.
Extending the Limits of Deep Water Drilling
For FASTR Efficiency and Performance, Let’s Talk.
The FASTR® System can safely revolutionize your operations—that includes rapid deployment to any well, anywhere. Let us prove it.
